LES PAUL Style Wiring harnesses
By far our most popular wiring harness. Drops right in to genuine Gibson guitars without any modifications. Fits many import guitars* including Epiphone, Ibanez, Prestige, Sparrow, Vintage, MRW, El Degas and others.
*Note: many import guitars will require that the metric holes for the Volume and Tone controls be enlarged to accommodate the 3/8" USA CTS pot shafts. Also, some guitars may require long-shaft pots depending on the thickness of the wood cap. We now offer kits made with CTS M8 metric pots so you don’t have to drill out the holes - and because they have a coarse spline knurl, you can also continue to use your stock 18-spline knobs!
We also offer “medium” shaft (1/2”) CTS pots that are half way between the 3/8” short shaft pots, and the 3/4” long shaft pots. These can easily be adapted to standard 3/8” short shaft length with a 1/8” nut on the inside.
Les Paul CTS Wiring Harness
Our most popular wiring harness, made with CTS short-shaft 500K Volume and Tone pots, Orange Drop .022uf tone capacitors and Switchcraft output jack.

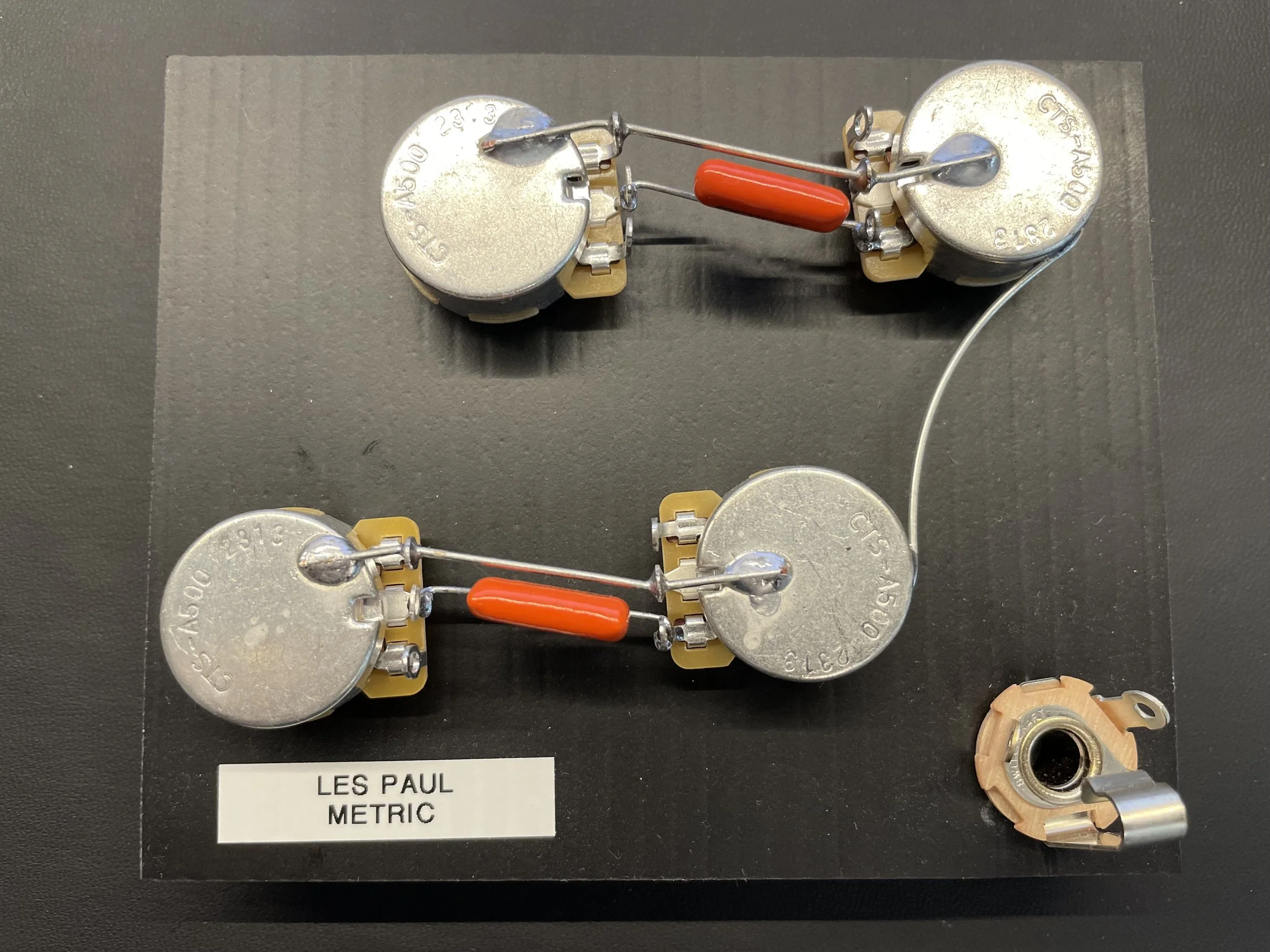

CTS short shaft pots available in 3/8” SAE for domestic guitars (i.e. Gibson), and M8 Metric which is ideal for import guitars - namely Epiphone.
Available in 50's Vintage (default) and Modern wiring configurations. Optional independent Volume wiring available on request.
$75 + S&H
Add $40 to upgrade all pots to genuine Gibson 500K pots
Add $35 for prewired* nickel Switchcraft 3-way toggle switch
Add $20 to upgrade to gold Switchcraft 3-way toggle switch, and $10 to upgrade to gold Switchcraft output jack.Add $10 for long-shaft pots.
$50 deposit required for custom orders.
* NOTE: 3-way toggle switches are prewired using 4-conductor PVC wiring. Add $10 for 3 X 18" lengths of braided shield wiring.
Les Paul cts Push/Pull Wiring Harness
A twist on our standard Les Paul wiring harness, but with Bourns or CTS 500K (shown here) audio taper push/pull Volume pots for coil-splitting 4-conductor humbucker pickups. Includes new Switchcraft output jack
Available in 50's Vintage (default) and Modern wiring configurations. Optional independent Volume wiring available on request.
$85 + S&H
Add $20 to upgrade Tone pots to genuine Gibson 500K pots
Add $35 for prewired* nickel Switchcraft 3-way toggle switch ($45 for a gold one)
Add $10 for long-shaft pots.
$50 deposit required for custom orders.
* NOTE: 3-way toggle switches are prewired using 4-conductor PVC wiring. Add $10 for 3 X 18" lengths of braided shield wiring.
Premium Les Paul Wiring Harness
Premium Les Paul wiring harness made with genuine Gibson short shaft 500K Volume and Tone pots, genuine Luxe Radio .022uf Bumble Bee tone capacitors.
Available in 50's Vintage (default) and Modern wiring configurations. Built on-demand. Optional independent Volume wiring available on request. Long shaft pots also available upon request
$200 + S&H
